Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate, one step at a time. With a computer controlled stepping you can achieve very precise positioning and/or speed control.

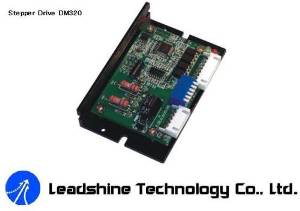

The DM320C is a versatility fully digital stepping driver based on a DSP with advanced control algorithm. The DM320C is the next generation of digital stepping motor controls. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor self-test and parameter auto-setup technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers in the markets. Its unique features make the DM320C an ideal solution for applications that require low-speed smoothness.
The M542 is an economical microstepping driver based on patented technology of Leadshine. It is suitable for driving 2-phase and 4-phase hybrid stepping motors. By using the advanced bipolar constant-current chopping technique, it can output more speed and torque from the same motor compared with traditional drivers, such as L/R drivers. Its 3-state current control technology allows coil currents to be well controlled and with relatively small current ripple, therefore less motor heating is achieved.
The MA860HH is a high performance microstepping driver based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drivers in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors.
Very easy to use, no instructions, all of use are marked on the board
With large heat sink to ensure good heat dissipation
Input signal high-speed optocoupler isolation, guarantee not losing steps
Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of
semi-flow model and semi-flow current setting function
Attenuation model adjusted for all the motors can be locked when no noise
Working voltage :DC 10V-35V.Recommend Switching Power Supply DC24V
6N137 high-speed OptoCoupler , to ensure a high speed without step out.
New original Toshiba TB6560AHQ chip, low-voltage shutdown, of overheating parking and over-current protection circuit to ensure optimal performance.
Rated output: ± 3A ,peak 3.5A.
For 42,57,86 Stepper within 3A 2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
Automatic half-decay.
Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
The latest upgraded 5 axis breakout board is specially designed for the CNC single axis 2-phase stepper driver controller, such as TB6560, M542, M542H, MA860H, 2M542, 2M982, DM542(A), DM860(A) etc. single axis stepper driver controller series. With this 5 axis breakout board, any 1-5 single axis stepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, etc
